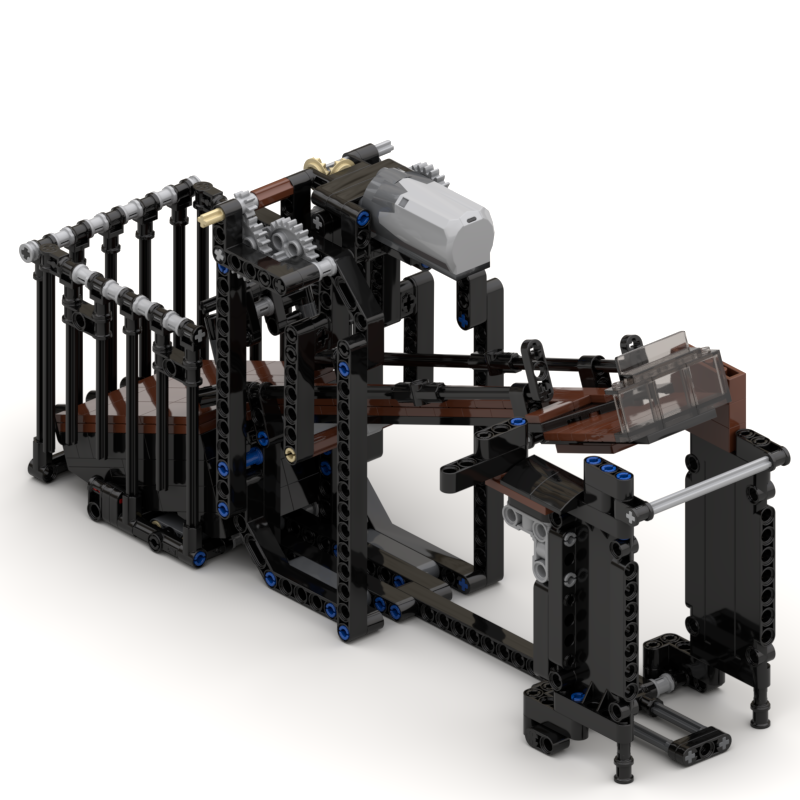

Building instructions for Modular Tipper Module

See the video for how to combine this module with others and for how to mount L-motors more directly. Push the sides of the outbox together at the crossaxle 9 to make it work better.

Remember that colors are irrelevant. See the same GBC module with the outbox to the other side [https://brickhub.org/i/445](here).

The instructions show a couple of upgrades after the video was made: The tipper is more sturdy where the lift pulls it up, and some parts are transparent for better visibility.

Download

LDraw File - OMR Version This LDraw file is has all unofficial and textured parts inlined. Original LDraw File The LDraw file is downloaded directly from the server. Studio 2.0-Safe LDraw File This LDraw file has been modified to ensure that it loads correctly in Studio 2.0.

Unofficial parts

For Studio 2.0, these parts should be saved in C:\Program Files\Studio 2.0\ldraw\Custom Parts\Parts on Windows and Applications/Studio 2.0/ldraw/Custom Parts/Parts on MAC. See this video for a guide of how to set it up in Studio 2.0 and use their rendering engine.

Description	LDraw File	Studio 2.0 File	Preview
