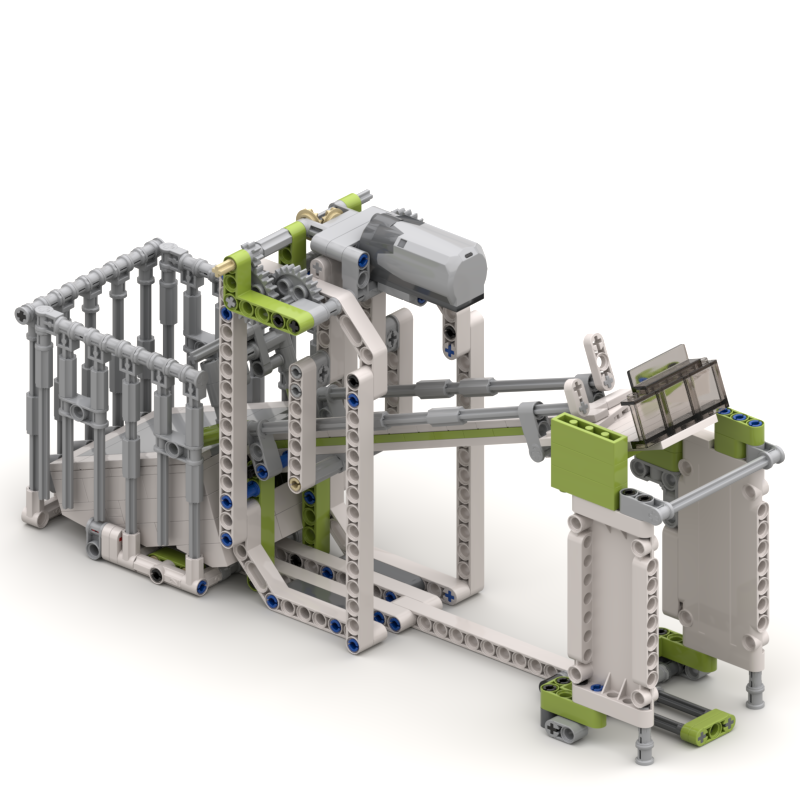

Modular Tipper Module - Exit Left
3D
Loading...
See the video for how to combine this module with others and for how to mount L-motors more directly. Push the sides of the outbox together at the crossaxle 9 to make it work better.

Remember that colors are irrelevant. See the same GBC module with the outbox to the other side [https://brickhub.org/i/446](here).

The instructions show a couple of upgrades after the video was made: The tipper is more sturdy where the lift pulls it up, and some parts are transparent for better visibility.
« like own watch »
By Lasse Deleuran License: Public Domain
Theme: GBC Year: 2019
My Own Creation (MOC).
