Building instructions for Pump Module Version 2M

New versions of this module are available. [https://brickhub.org/i/462](Version with M motor here) and [https://brickhub.org/i/461](with XL motor here).

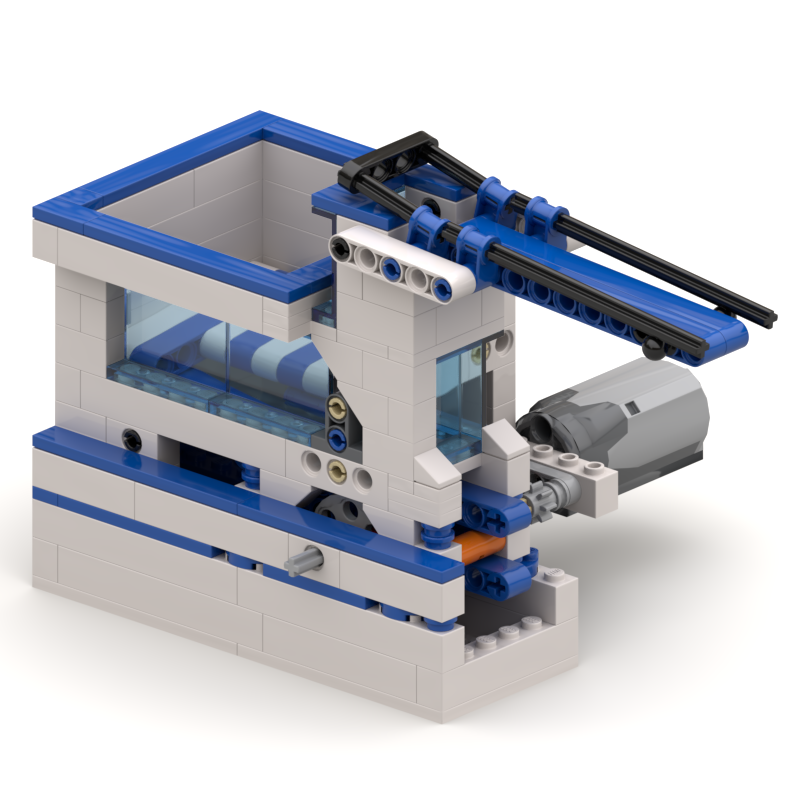

This is a simple GBC pump module made of common parts. This module works even at low speed and you can power it using any type of Power Function motor.
Please note that you might have to exchange one of the blue pins in the anti-jamming mechanism with the tan one if you are powering the module using an M-motor as the instructions show.

Download

LDraw File - OMR Version This LDraw file is has all unofficial and textured parts inlined. Original LDraw File The LDraw file is downloaded directly from the server. Studio 2.0-Safe LDraw File This LDraw file has been modified to ensure that it loads correctly in Studio 2.0.

Unofficial parts

For Studio 2.0, these parts should be saved in C:\Program Files\Studio 2.0\ldraw\Custom Parts\Parts on Windows and Applications/Studio 2.0/ldraw/Custom Parts/Parts on MAC. See this video for a guide of how to set it up in Studio 2.0 and use their rendering engine.

Description	LDraw File	Studio 2.0 File	Preview
